კამერა ანალოგიური AE-VC152T-S_2.1mm, საავტომობილო სისტემებისთვის

Description

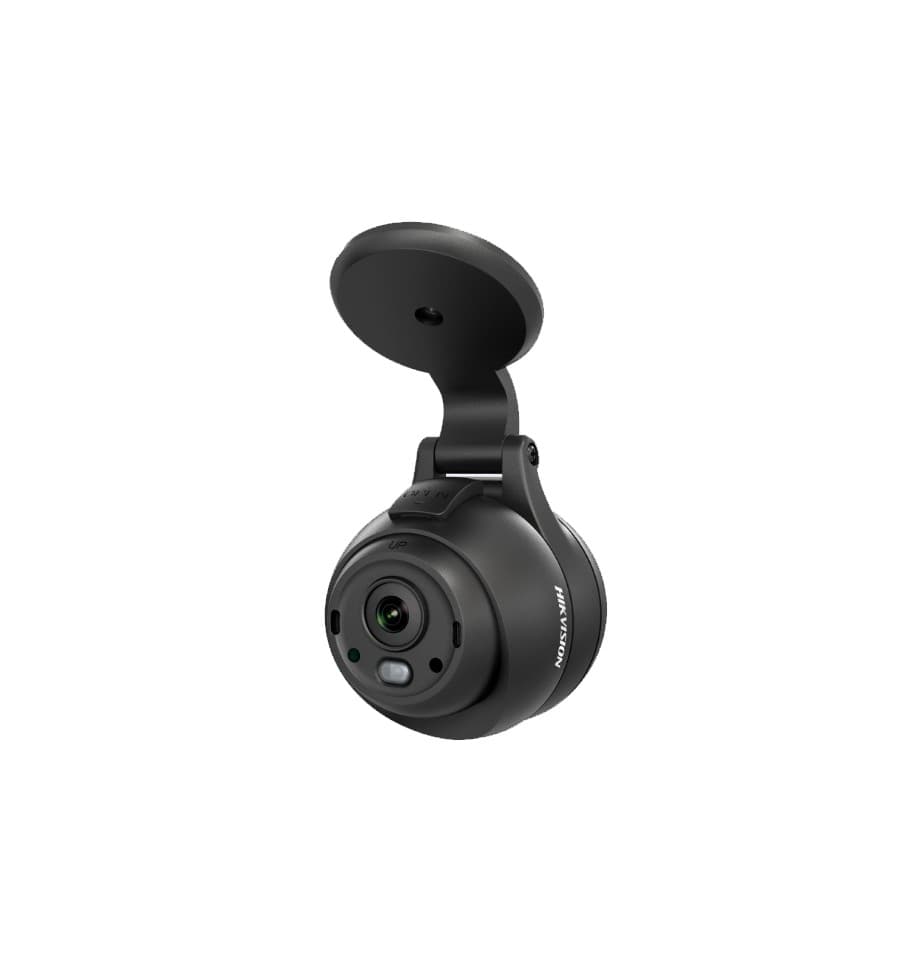

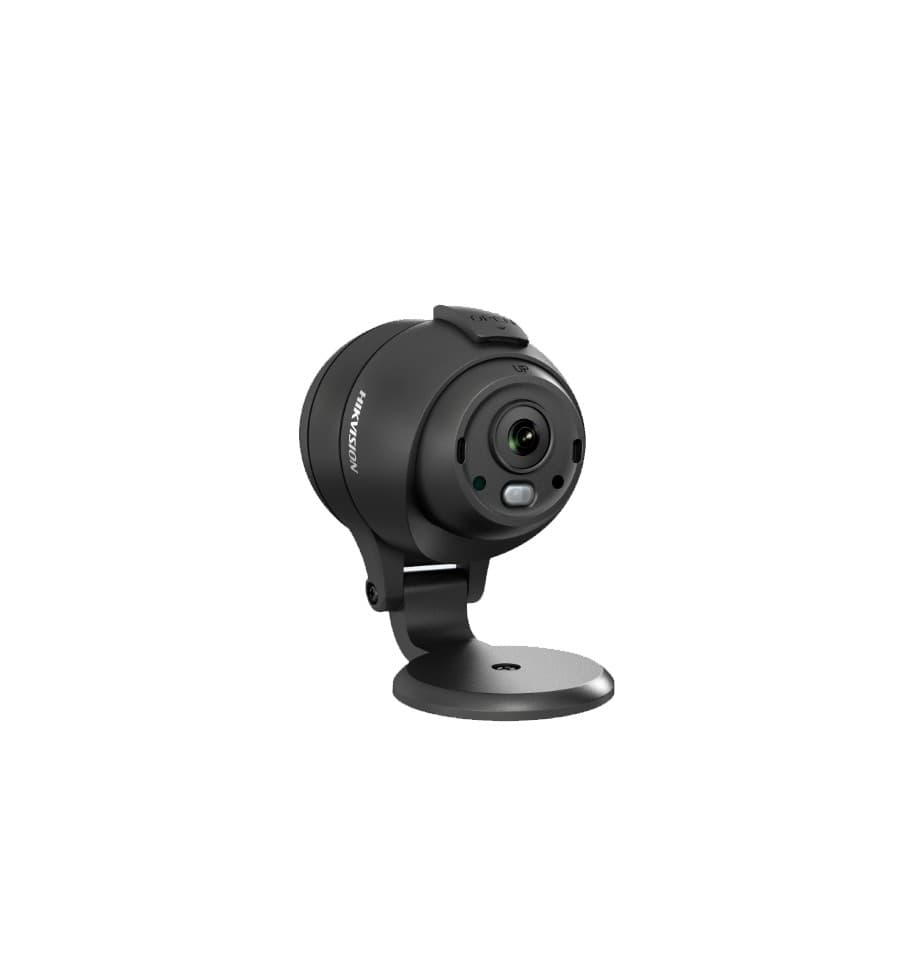

The HD-TVI Hikvision AE-VC152T-S (2.1 mm) video camera is a new model of the 1.0 megapixel HD-TVI Hikvision line for mobile installations with a sensitivity of 0.1 Lx with a real aperture of the installed lens (F=2.0). The camera features a built-in microphone, a separate audio signal output, and output aviation connectors with increased resistance to shaking.
AE-VC152T-S (2.1 mm) generates an output signal in the resolution of 1296(H)x732(V) with a frame refresh rate of 25 fps. The camera has an electronic day/night filter.
The AE-VC152T-S (2.1 mm) model has a built-in microphone for transmitting audio signal via the audio output.
Image Sensor:1MP CMOS Image SensorSignal System:PAL/NTSCEffective Pixels:1296(H)x732(V)Min. Illumination:0.1Lux @ (F1.2,AGC ON)Shutter Time:1/25(1/30) s to 1/50,000 sLens:2.1mm,2.8mm optionalLens Mount:M12Adjustment Range:Pan: 0°; Tilt:0°; Rotation: 0°, Bracket Angle Adjustment Range: 0° to 180°Day& Night:ElectronicVideo Frame Rate:720p@25fps/720p@30fpsSynchronization:Internal SynchronizationS/N Ratio:More than 62 dBAGC:SupportAudio In:Built-in MicrophoneAudio Out:1-ch, Aviation Port (Output Impedance: 1KΩ±10%)Video Out:1Vpp Composite OutputOperation Condition:-30°C to 65°C (-22°F to 149°F), Humidity 90% or less (non-condensing)Power Supply:6VDC to 16VDCPower Consumption:MAX. 1.5WDimension:60mm×76mm×55mmWeight:Approx. 200g
