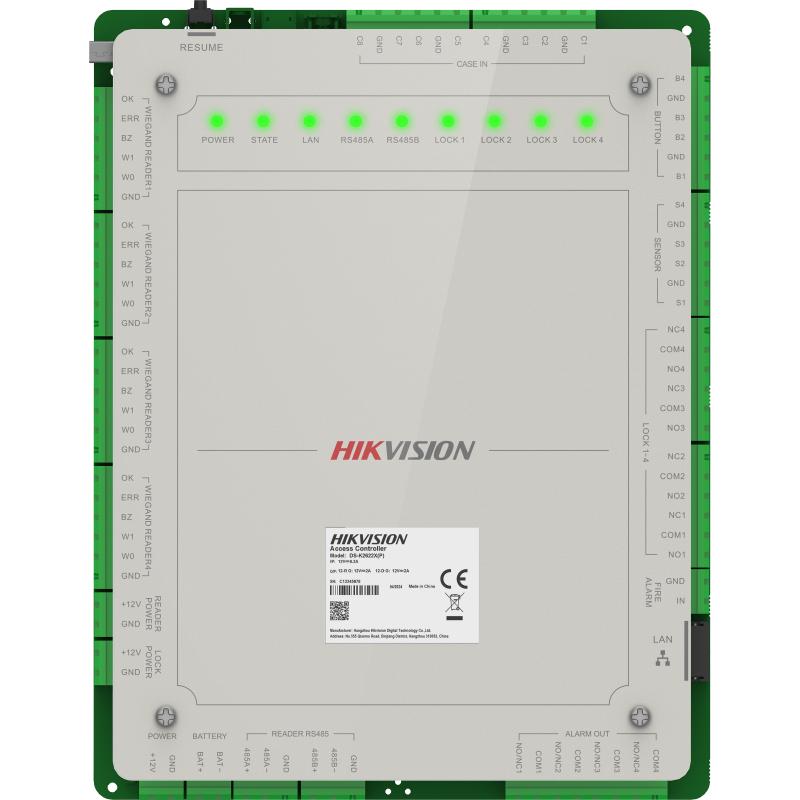

ოთხი კარის კონტროლერი DS-K2624X main board
ოთხი კარის კონტროლერი DS-K2624X main board - Image 2
ოთხი კარის კონტროლერი DS-K2624X main board - Image 3

ოთხი კარის კონტროლერი DS-K2624X main board

581,00 ₾

SKU: 18555 Category: Brand:

Description

NetworkWired network10/100 Mbps self adaptive
InterfaceNetwork interface1Lock control4Exit button4Door contact input4Alarm input8Alarm output4TAMPER1RS-4852 for card reader (1 for communication, 1 for redundancy; each interface can connect up to8 readers)Wiegand4, standard 26/34 input, supports custom Wiegand settingsFire interfaceSupport
CapacityLinked door capacity4Linked card reader capaciry8 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers
GeneralBatteryCharge and dischargePower supply100 VAC to 240 VACPower consumption≤ 102 WWorking temperature-10 °C to 55 °C (14 °F to 131 ° F)Working humidity0% to 90% (No condensing)

Additional information

Doors

4
Battery

Charge and discharge
Bandwidth

10/100 Mbps
Interface

Network interface, RS-485, Wiegand
LAN Ports

1
Link Type

Wired network
Alarm input

4
Exit button

4
Reader Type

RS-485, Wiegand
Alarm output

4
Lock control

4
Power supply

100-240 VAC
Fire interface

Support
Working humidity

0% to 90%
Power consumption

≤102 W
Working temperature

-10°C to 55°C
Card Reader Standard

26/34 Wiegand
Linked door capacity

4
Detector Connection Type

Door contact input, Alarm input/output
Linked card reader capacity

8
