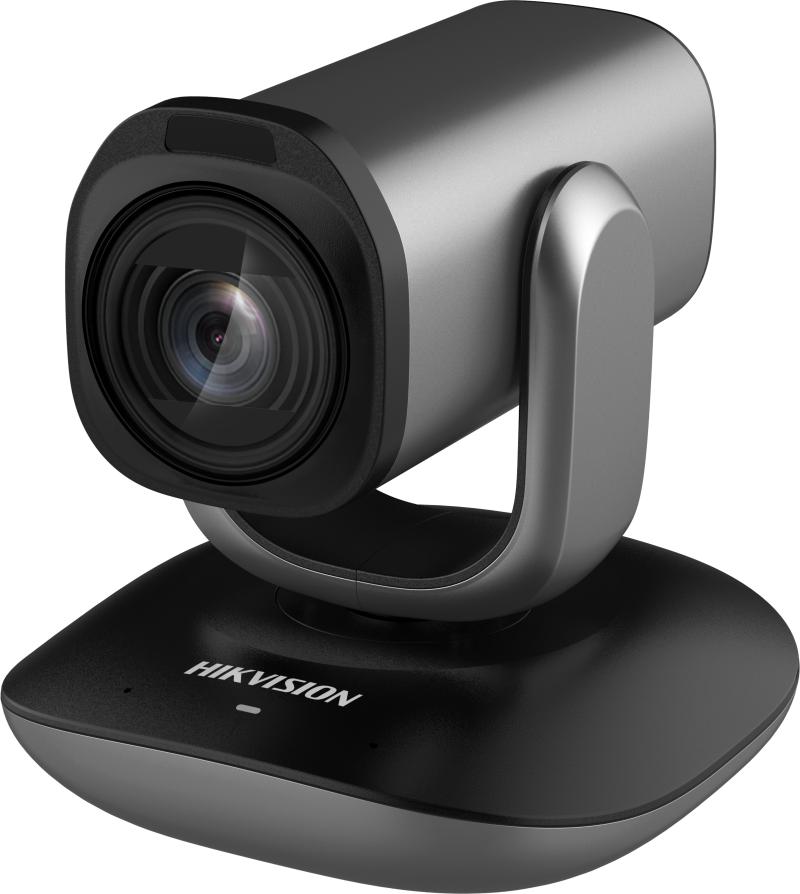

საკონფერენციო კამერა (მიკროფონით და სამართავი პულტით) DS-UVC-P28,3-15mm,8MP,PTZ,VF,Dual Mic

Description

CameraImage Sensor1/2.8″ 4 K CMOSMax. Resolution3840 × 2160USB OutputMJPG:3840 × 2160, 2560 × 1440 @30/25 fps1920 × 1080, 1280 × 960, 1280 × 720 @60/50/30/25 fpsH.264:3840 × 2160, 2560 × 1440 @30/25 fps1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @60/50/30/25 fpsYUY2/NV12:1920 × 1080 @5 fps1280 × 960 @10 fps1280 × 720 @15 fps640 × 480, 640 × 360 @30/25 fpsShutter TimePAL: 1/25 s to 1/10,000 s,NTSC: 1/30 s to 1/10,000 sObject Distance RangeWide: 0.1 m to ∞, Tele: 1.5 m to ∞Optical Zoom×12Digital Zoom×4 (YUV Format: ×1.5)Angle AdjustmentPan: -165° to 165°,Tilt: -30° to 30°
LensFocal Length & FOVVarifocal lens: 3.4 mm to 40.8 mm, equivalent focal length: 23.1 mm to 277.2 mmHorizontal FOV: 80.5° to 7.6°, vertical FOV: 50.5° to 4.4°, diagonal FOV: 88.9° to 8.7°FocusAuto/Semi-auto mode, supporting selection of focus area
MicrophoneTypeMEMSPolar Pattern360° omni-directionalPickup DistanceIn a radius of up to 5 mAmountDual-microphoneFrequency Response100 Hz to 8 kHzSensitivity-32 ± 3 dBV/PaSNR70 dB(A)Sampling Rate16 kHz/32 kHz/48 kHz
FunctionsImage FunctionSupport adjustment of related parameters such as exposure, white balance and image settings (including image DNR, contrast, sharpness, saturation, hue, Gamma, etc.)Audio FunctionSupport steady and transient smart noise reduction, automatic gain control, echo suppression, time domain equalization algorithm, ambient noise suppression and enhanced vocals to enhance speech quality and offer audio in high qualitySmart FunctionSupport human body following and face focusLED IndicatorDevice startup: solid white -> flashing white -> solid whiteDevice working: solid whiteDevice mute: solid redDevice shutdown: light off
CommunicationCommunication MethodCamera and remote control: 2.4G wirelessWireless Communication DistanceCamera and remote control: 10 m
ImageWide Dynamic Range (WDR)≥120 dB
InterfaceUSB1 USB Type-C interface (for transmitting audio and video), supporting USB 3.0 protocolAudio1 audio input (line in), 3.5 mm three-segment TRS interface1 audio output (line out), 3.5 mm three-segment TRS interfacePower Interface12 VDC, Ø2.1 mm
CompatibilitySystem RequirementOperating System:Windows 7/8/10/11 (For resolutions higher than 1080p, Windows 8.1 and above version is required)Android 8.1 and above versionLinux 4.14 and above versionmacOS 10.12 and above version
GeneralPower12 VDC ± 25%, max. 16.6 WOperating Condition-10 °C to 45 °C (14 °F to 113 °F). Humidity 90% or less (non-condensing)Dimension148.9 mm × 145.7 mm × 152.1 mm (5.86″ × 5.74″ × 5.99″ )Package Dimension308 mm × 216 mm × 187 mm (12.13″ × 8.5″ × 7.36″ )WeightApprox. 1185 g (2.61 lb.)With Package WeightApprox. 2705 g (5.96 lb.)Packing ListCamera (including lens cover) × 1Remote Control × 1Power Adapter (1.2 m, with American, British, and European plug adapter) × 1Power Adapter Extension Cable (3 m) × 1USB 2.0 Cable (4.5 m) × 1Bracket × 1Screws × 1Battery × 2Regulatory Compliance and Safety Information × 1
